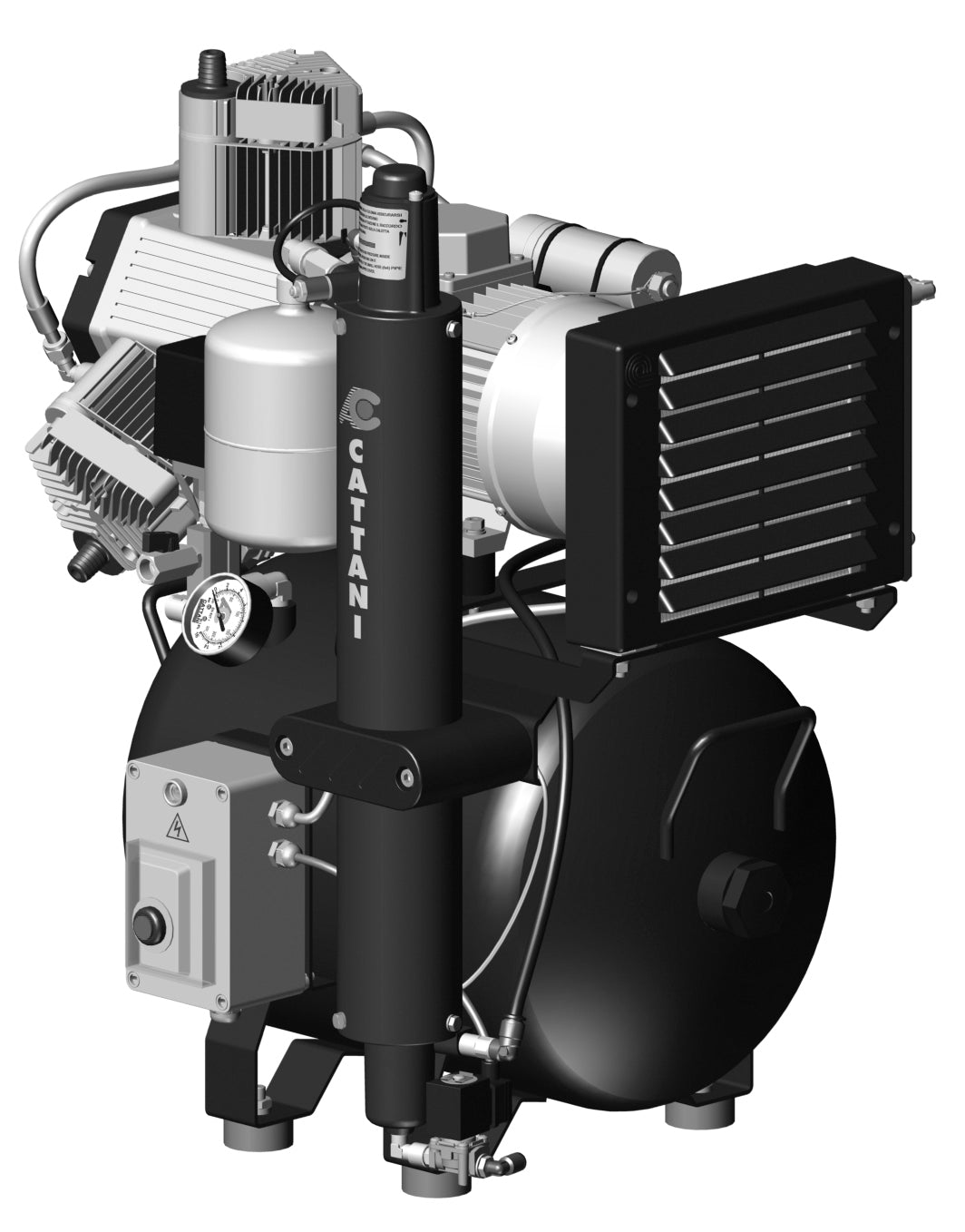

Hatch Cattani AC 300
Oil-free three cylinder compressor with air drier and a 45 litre tank, suggested for 3 dental units.
- Oil-free
- Three cylinder with air drier
- HEPA H14 filtered air
- 45 litre air tank
- For 3 dental units
- Made in Italy by Cattani
- Spec sheet and manual
- Health Canada licensed
- (905) 997-7171
- Demos across Canada

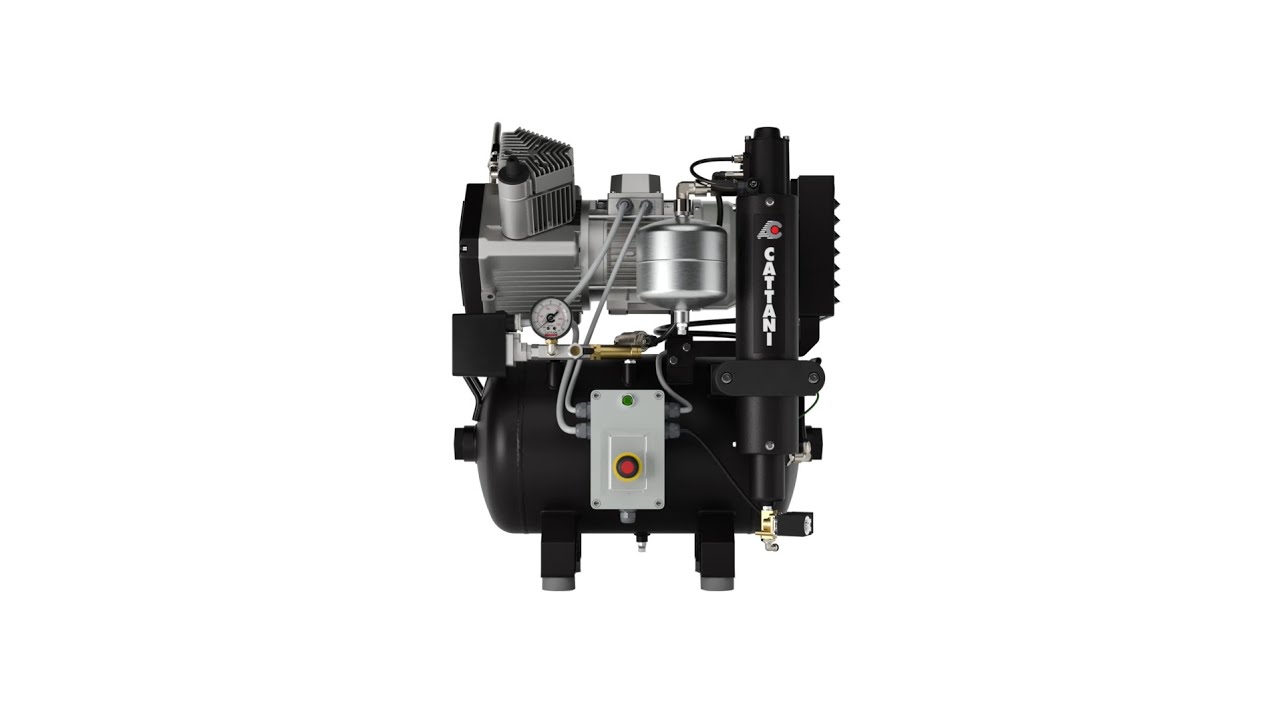

360 view
Every angle of the Hatch Cattani AC 300
Overview
About the Hatch Cattani AC 300
Video
See the Hatch Cattani AC 300 in motion
From the manufacturerHatch Cattani AC 300Cattani's Six-Stage Dental Air Purification System
More equipment videos
Specifications
Technical details
| Model | Hatch Cattani AC 300 |
|---|---|
| Type | Oil-free air compressor |
| Design | Three cylinder, with air drier |
| Air tank | 45 litres, antibacterial coating inside |
| Air delivery | 238 Nl/min at 5 bar |
| Working pressure | 6 to 8 bar, factory set |
| Suggested for | 3 dental units |
| Air treatment | Heat exchanger, cyclone, silica gel drier, sintered bronze and HEPA H14 filters |
| Sound pressure level | 73.6 dB(A); 68 dB(A) for the AC 300 Q with plastic cover |
| Noise reduction options | Plastic cover, about -10 dB(A), or soundproof cabinet, about -20 dB(A) |
| Electrical, 60 Hz version | 220 V, 60 Hz, single phase, 1.75 kW, 12.2 A |
| Dimensions | W 620 x D 520 x H 750 mm |
| Dimensions, AC 300 Q | W 720 x D 600 x H 970 mm |
| Net weight | 65 kg; 80 kg for the AC 300 Q |
| Operating temperature | +5 Β°C to +35 Β°C |
| Manufacturer | Cattani, Italy, supplied by Hatch Group |
Downloads
Documents
- Cattani 1, 2 and 3 cylinder compressors manual (English)Instructions for use Β· PDF
- Cattani oil-less compressors brochure (2023)Brochure Β· PDF
- Cattani AC 300 dimensional drawings (DWG)Spec sheet Β· ZIP
Planning the room around it?
Send us your floor plan and we will check plumbing, power and clearances before you order.
Talk to a specialistOptions and alternatives
Pairs with, or compare against
Hatch Cattani AC 300 FAQ
Questions about the Hatch Cattani AC 300
Still deciding? Call us or book a demo and a specialist will help you size the right unit.
Cattani suggests the AC 300 for 3 dental units. Its 3 cylinders deliver 238 Nl/min at 5 bar into a 45 litre tank, factory set to work between 6 and 8 bar. Each cylinder gives about 60 l/min, and Cattani advises leaving spare capacity so the air drier can regenerate and the pump can cool. For 4 to 5 units, look at the AC 400.
Yes. The pistons run without oil, and the built-in drier cools the air in a heat exchanger, removes condensate in a cyclone and dries it in a silica gel column, then filters it through sintered bronze and an antibacterial HEPA H14 filter. The drier regenerates itself after every cycle, and the 45 litre tank is coated inside with an antibacterial resin approved for food contact.
The standard AC 300 is rated 73.6 dB(A). The AC 300 Q, with Cattani's noise-reducing plastic cover, is rated 68 dB(A) and measures W 720 x D 600 x H 970 mm. Cattani's soundproof cabinet cuts about 20 dB(A), fits the AC 300 and measures W 840 x D 700 x H 887 mm.
Cattani's 60 Hz version of the AC 300 runs on 220 V, 60 Hz, single phase, drawing 1.75 kW and 12.2 A. An earth connection is required. Plug it straight into its own outlet, never an extension cord or power bar, and confirm the circuit with your electrician before installation.

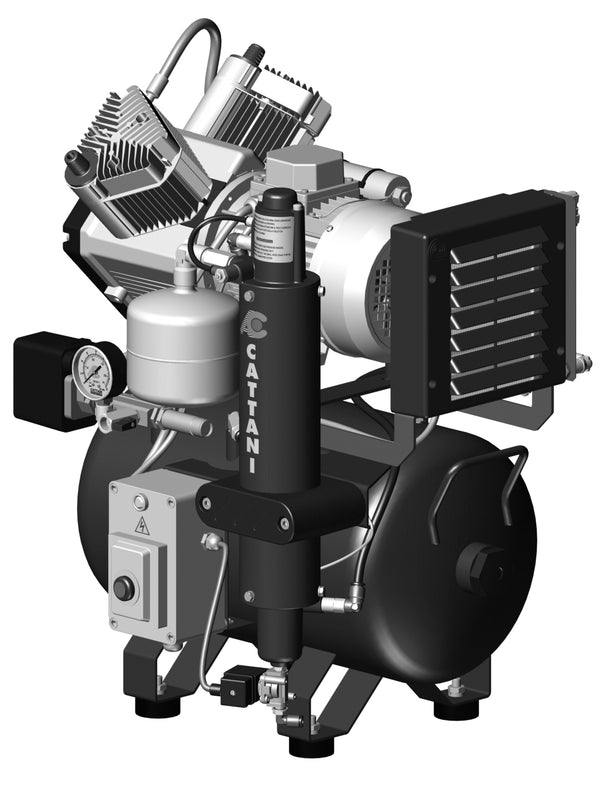

Both are oil-free, with a built-in air drier and an antibacterial HEPA H14 filter. The AC 200 has 2 cylinders, a 30 litre tank and delivers 160 Nl/min, suggested for 2 dental units. The AC 300 has 3 cylinders, a 45 litre tank and delivers 238 Nl/min, suggested for 3 dental units. The AC 300 is a little larger (W 620 x D 520 x H 750 mm, 65 kg, against W 620 x D 460 x H 720 mm and 54 kg). For 4 to 5 units, look at the AC 400.
Choose by the number of dental units working at once. The AC 300 suits 3 (238 Nl/min, 45 litre tank, 1 air drier) and the AC 400 suits 4 to 5 (320 Nl/min, 100 litre tank, 2 air driers). The AC 400 is much larger at W 1155 x D 550 x H 745 mm and 112 kg, so check the space in your plant room.
Cattani recommends a plant room that patients and untrained staff cannot enter, kept between +5 Β°C and +35 Β°C, with a mandatory earth connection, a floor drain and no flammable materials stored nearby. Above 35 Β°C the air drier works less well and the compressor wears faster. A trained technician should install and test the unit, and Cattani recommends a closed loop of insulated copper pipe to keep the pressure steady and the air clean.
Cattani's manual asks for a few simple checks. Open the drain tap under the tank from time to time and look for moisture, check the cooling fans every 12 months, and replace the HEPA H14 filter every 12 months in a clean environment. A trained technician should inspect the compressor every 6 to 12 months, depending on workload, using genuine Cattani parts. A normal charge takes about 45 to 55 seconds, followed by a rest of about a third of that time.
The price depends on the model, the version (standard, or Q with a noise-reducing cover), a soundproof cabinet if you want one, and installation. Request a quote with your number of chairs and we will send a price for your clinic.
Yes. Hatch Group supplies Cattani compressors, suction units and amalgam separators to dental clinics across Canada. Request a quote with your clinic's location and number of chairs, and we will confirm the right model, noise option and delivery.
