Air Compressors and Suction

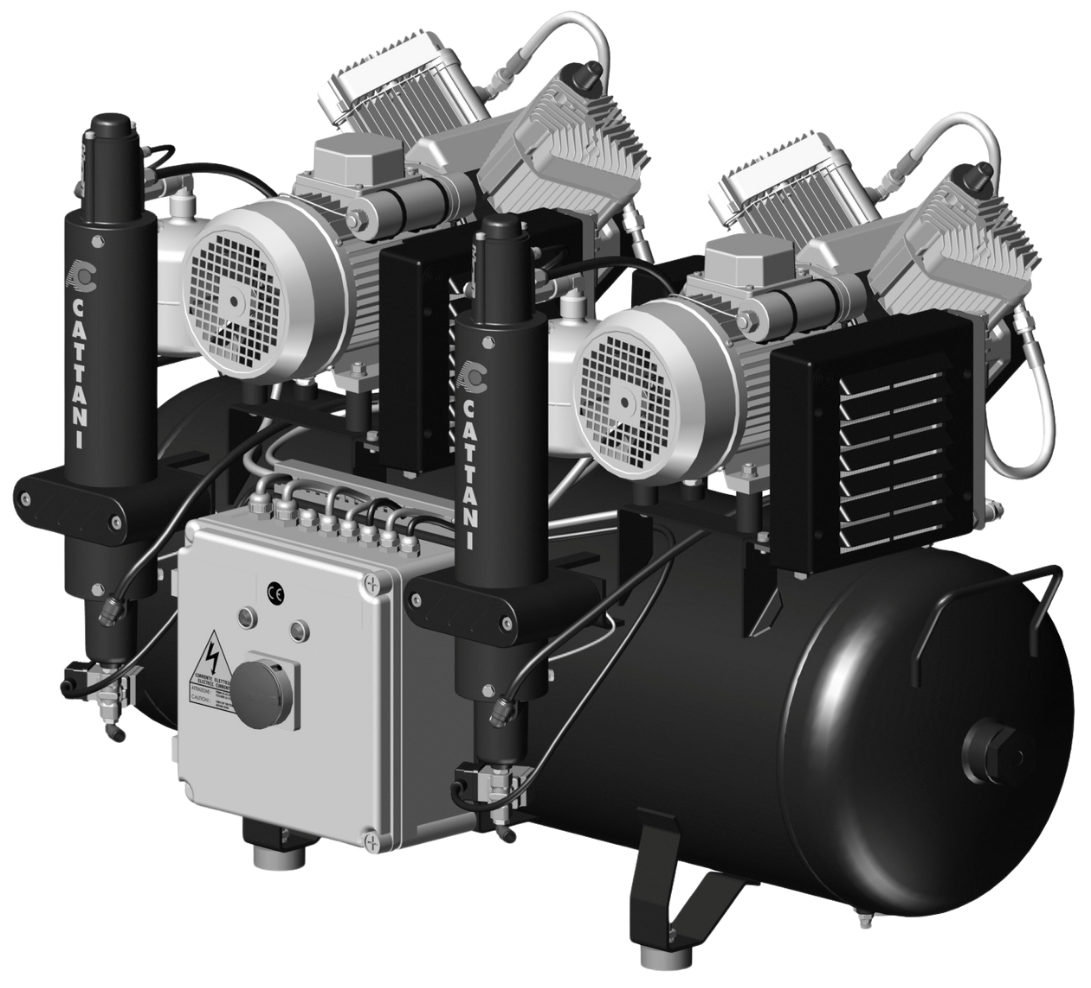

Hatch Cattani AC 400
Oil-free twin cylinder compressor with 2 air driers, sized for 4 to 5 dental units.
- Oil-free
- Twin cylinder, twin head
- 2 air driers
- 100 litre air tank
- For 4 to 5 dental units
- Made in Italy by Cattani
- Spec sheet and manual
- Health Canada licensed
- (905) 997-7171
- Demos across Canada
Overview
About the Hatch Cattani AC 400
Video
See the Hatch Cattani AC 400 in motion
From the manufacturerHatch Cattani AC 400How Cattani Oil-Free Compressors Protect Your Dental Handpiece
More equipment videos
Specifications
Technical details
| Model | Hatch Cattani AC 400 |
|---|---|
| Type | Oil-free air compressor |
| Design | Twin cylinder, twin head, horizontal tank |
| Air tank | 100 litres |
| Air delivery | 320 Nl/min at 5 bar |
| Air driers | 2 |
| Motors | 2 |
| Suggested for | 4 to 5 dental units |
| Sound pressure level | 73 dB(A) |
| Noise reduction option | Plastic cover, about -10 dB(A) |
| Dimensions, AC 400 Q | W 1160 x D 650 x H 890 mm |
| Dimensions | W 1155 x D 550 x H 745 mm |
| Net weight | 112 kg |
| Manufacturer | Cattani, Italy, supplied by Hatch Group |
Downloads
Documents
- Cattani compressed air units manual (English)Instructions for use · PDF
- Cattani oil-less compressors brochure (2023)Brochure · PDF
- Cattani AC 400 dimensional drawings (PDF)Spec sheet · PDF
- Cattani AC 400 dimensional drawings (DWG)Spec sheet · ZIP
Planning the room around it?
Send us your floor plan and we will check plumbing, power and clearances before you order.
Talk to a specialistOptions and alternatives
Pairs with, or compare against
Hatch Cattani AC 400 FAQ
Questions about the Hatch Cattani AC 400
Still deciding? Call us or book a demo and a specialist will help you size the right unit.
Cattani suggests the AC 400 for 4 to 5 dental units. Two motors and twin cylinder heads deliver 320 Nl/min at 5 bar into a 100 litre tank, with 2 air driers.
The AC 400 is rated 73 dB(A). It takes Cattani's noise-reducing plastic cover, about 10 dB(A) quieter, as the AC 400 Q (W 1160 x D 650 x H 890 mm). Cattani's soundproof cabinet is made for the AC 100 to AC 300 only.
Choose by the number of dental units working at once. The AC 300 suits 3 (238 Nl/min, 45 litre tank, 1 air drier) and the AC 400 suits 4 to 5 (320 Nl/min, 100 litre tank, 2 air driers). The AC 400 is much larger at W 1155 x D 550 x H 745 mm and 112 kg, so check the space in your plant room.
Cattani recommends a plant room that patients and untrained staff cannot enter, kept between +5 °C and +35 °C, with a mandatory earth connection, a floor drain and no flammable materials stored nearby. Above 35 °C the air drier works less well and the compressor wears faster. A trained technician should install and test the unit, and Cattani recommends a closed loop of insulated copper pipe to keep the pressure steady and the air clean.
The price depends on the model, the version (standard, or Q with a noise-reducing cover), a soundproof cabinet if you want one, and installation. Request a quote with your number of chairs and we will send a price for your clinic.
Yes. Hatch Group supplies Cattani compressors, suction units and amalgam separators to dental clinics across Canada. Request a quote with your clinic's location and number of chairs, and we will confirm the right model, noise option and delivery.
See the Hatch Cattani AC 400 in person
Book a demo anywhere in Canada, or ask for a quote with installation included.
