Air Compressors and Suction

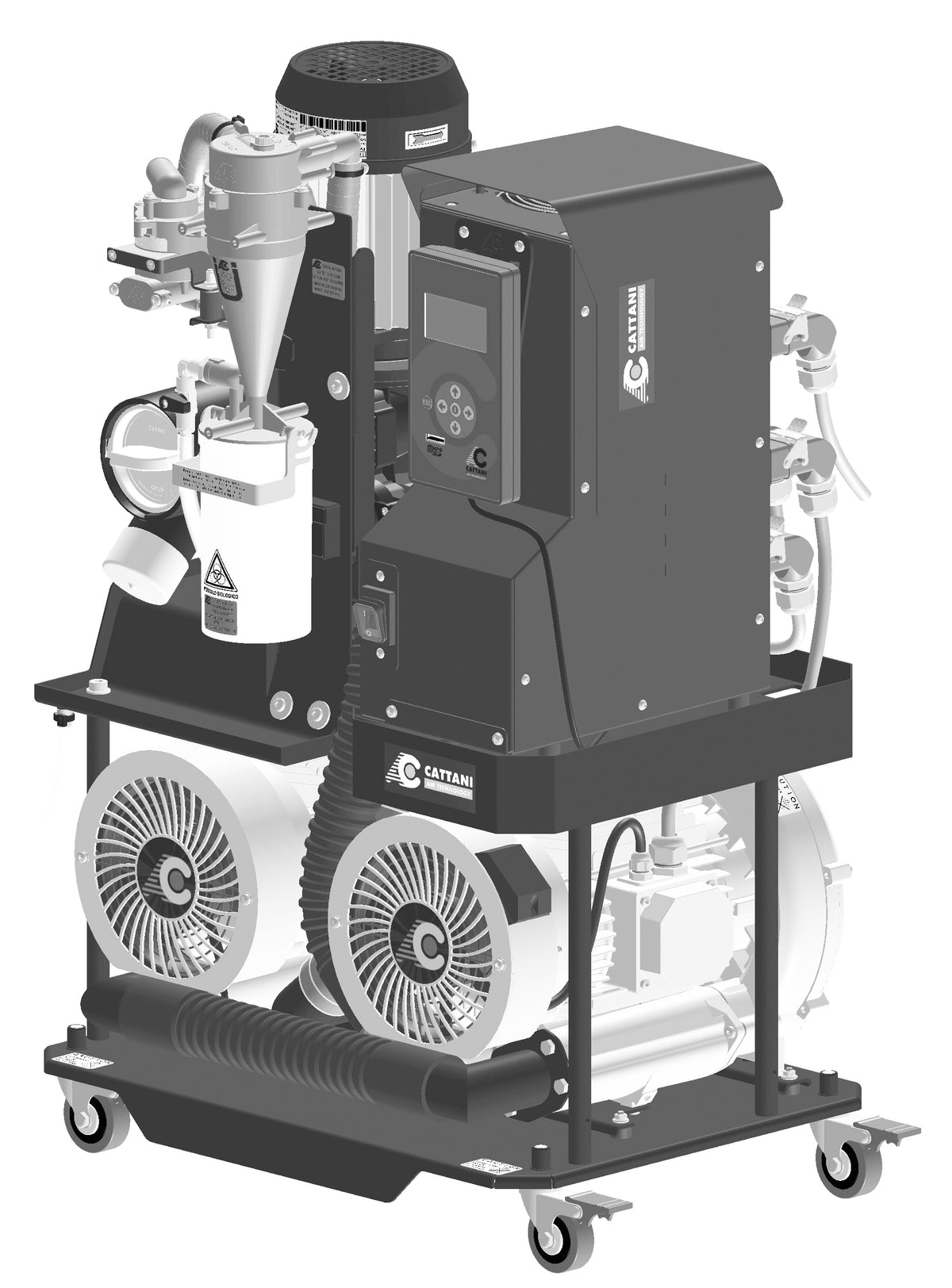

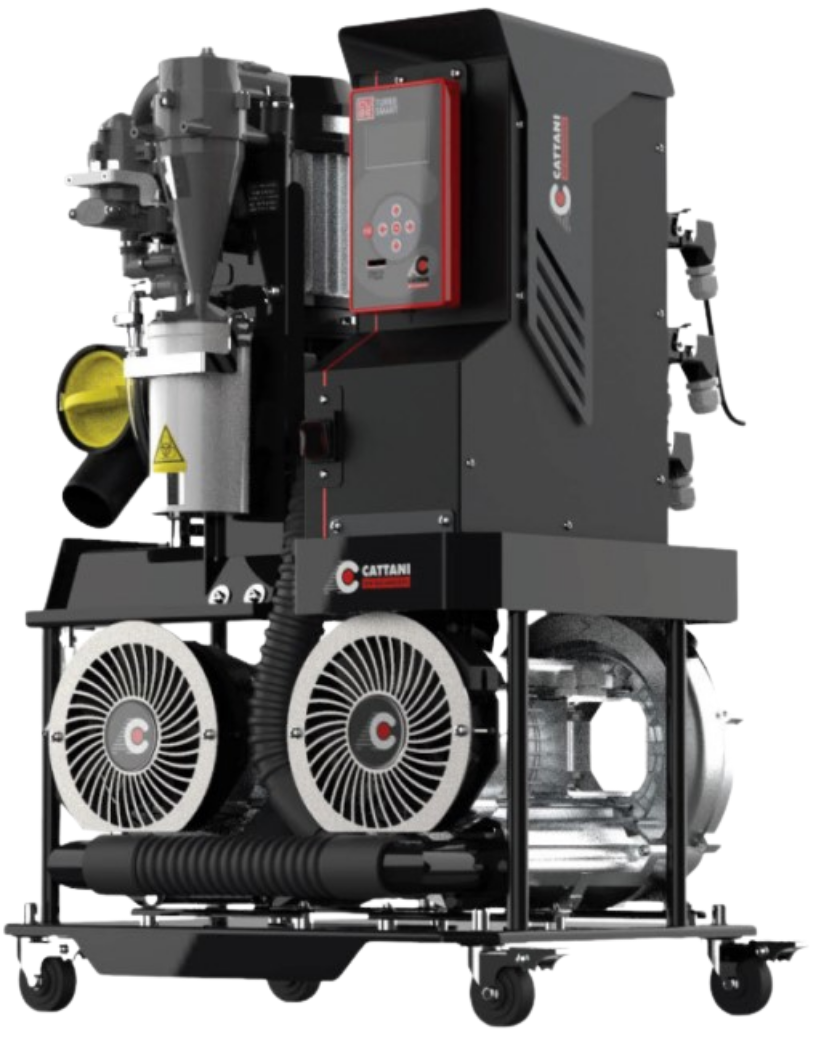

Cattani Turbo-Smart HP
Dry suction with inverter control and an ISO 18 hydrocyclone, for up to 4 surgeries at once.
- Up to 4 surgeries at once
- 1916 l/min maximum flow
- 338 mbar continuous service
- Inverter controlled
- ISO 18 hydrocyclone
- Made in Italy by Cattani
- Spec sheet and manual
- Health Canada licensed
- (905) 997-7171
- Demo room in Mississauga
360 view
Every angle of the Cattani Turbo-Smart HP
Specifications
Technical details
| Model | Cattani Turbo-Smart HP |
|---|---|
| Type | Dry suction unit |
| Version | Without casing, with ISO 18 hydrocyclone |
| Suggested for | Up to 4 surgeries working at the same time |
| Maximum flow rate | 1916 l/min |
| Maximum operating head | 338 mbar, continuous service |
| Power consumption | 3 kW, 12 A |
| Electrical | 230 V, 50/60 Hz, single phase |
| Sound pressure level | 70 dB(A) with ducted air |
| Dimensions | L 510 x D 370 x H 770 mm |
| Net weight | 56 kg |
| Manufacturer | Cattani, Italy, supplied by Hatch Group |
Downloads
Documents
Spec sheets for this model are on request. Call or email and we will send them the same day.
Planning the room around it?
Send us your floor plan and we will check plumbing, power and clearances before you order.
Talk to a specialistOptions and alternatives
Pairs with, or compare against
See the Cattani Turbo-Smart HP in person
Book a demo in Mississauga, or ask for a quote with installation included.
