How many dental chairs can the Cattani AC 400 supply?

Cattani suggests the AC 400 for 4 to 5 dental units. Two motors and twin cylinder heads deliver 320 Nl/min at 5 bar into a 100 litre tank, with 2 air driers.

Can the Cattani AC 400 be soundproofed?

The AC 400 is rated 73 dB(A). It takes Cattani's noise-reducing plastic cover, about 10 dB(A) quieter, as the AC 400 Q (W 1160 x D 650 x H 890 mm). Cattani's soundproof cabinet is made for the AC 100 to AC 300 only.

Should I choose the Cattani AC 300 or AC 400?

Choose by the number of dental units working at once. The AC 300 suits 3 (238 Nl/min, 45 litre tank, 1 air drier) and the AC 400 suits 4 to 5 (320 Nl/min, 100 litre tank, 2 air driers). The AC 400 is much larger at W 1155 x D 550 x H 745 mm and 112 kg, so check the space in your plant room.

Where should a dental air compressor be installed?

Cattani recommends a plant room that patients and untrained staff cannot enter, kept between +5 °C and +35 °C, with a mandatory earth connection, a floor drain and no flammable materials stored nearby. Above 35 °C the air drier works less well and the compressor wears faster. A trained technician should install and test the unit, and Cattani recommends a closed loop of insulated copper pipe to keep the pressure steady and the air clean.

How much does a Cattani dental compressor cost?

The price depends on the model, the version (standard, or Q with a noise-reducing cover), a soundproof cabinet if you want one, and installation. Request a quote with your number of chairs and we will send a price for your clinic.

Do you supply Cattani compressors across Canada?

Yes. Hatch Group supplies Cattani compressors, suction units and amalgam separators to dental clinics across Canada. Request a quote with your clinic's location and number of chairs, and we will confirm the right model, noise option and delivery.

Dental Air Compressors and Suction

Hatch Cattani AC 400 Dental Air Compressor

Oil-free twin cylinder compressor with 2 air driers, sized for 4 to 5 dental units.

Oil-free
Twin cylinder, twin head
2 air driers
100 litre air tank
For 4 to 5 dental units
Made in Italy by Cattani

$15,000.00 CAD

Health Canada licensed
(905) 997-7171
Demos across Canada

Overview

About the Hatch Cattani AC 400 Dental Air Compressor

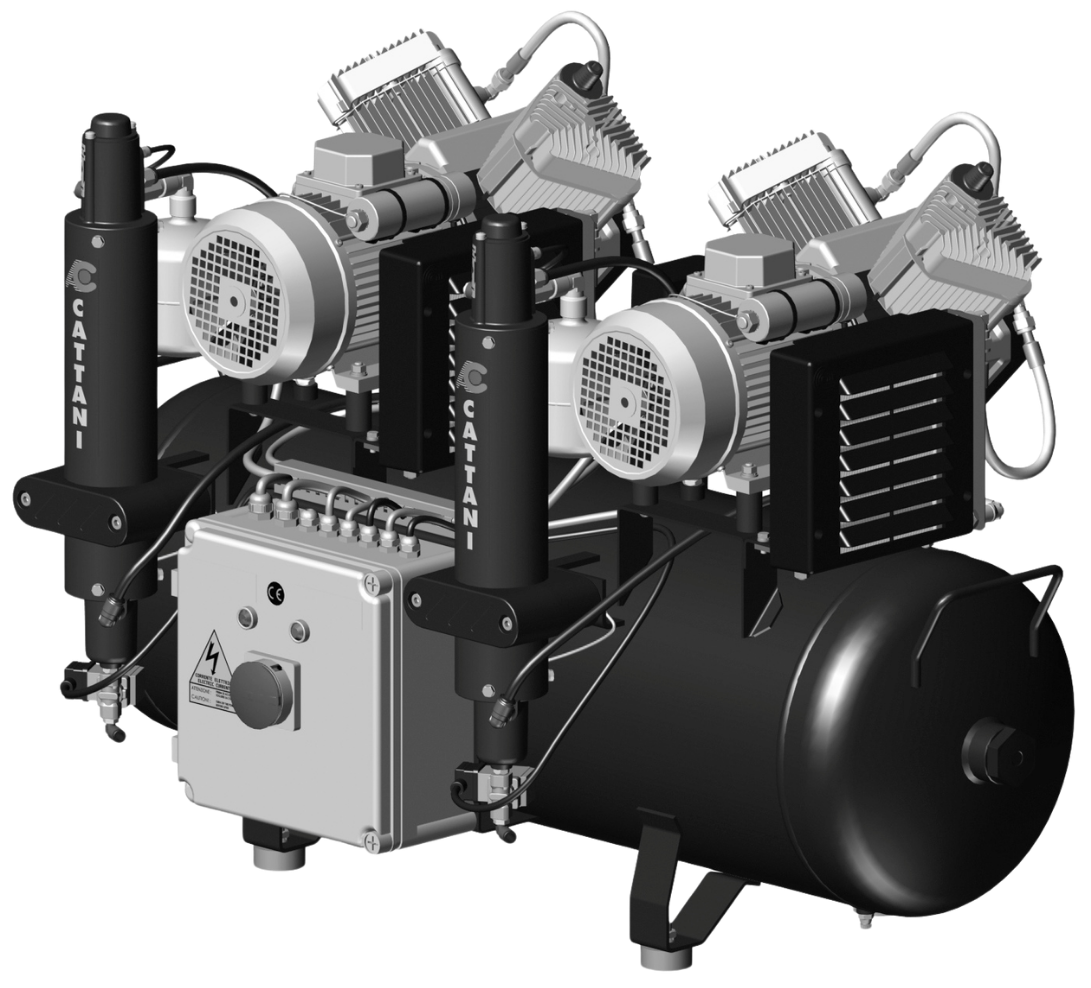

The Cattani AC 400 is an oil-free dental air compressor, made in Italy by Cattani and supplied across Canada by Hatch Group, for practices running 4 to 5 dental units. Two motors and twin cylinder heads fill a 100 litre tank, and 2 air driers deliver dry, clean air to the operatory at 320 Nl/min at 5 bar.

Why oil-free matters

With no lubricating oil in the cylinders, there is no oil to carry over into the air lines, handpieces and instruments. The AC 400 is rated 73 dB(A), and Cattani's noise-reducing plastic cover makes it about 10 dB(A) quieter as the AC 400 Q.

For 2 or 3 chairs, the Cattani AC 200 and AC 300 are smaller. Complete the plant room with the Cattani Turbo-Smart HP dry suction and the MARS LibertyBOSS amalgam separator, or see all dental air compressors and suction.

Video

See the Hatch Cattani AC 400 Dental Air Compressor in motion

Product walkthroughHatch Cattani AC 400 Dental Air CompressorPositioning, presets and the delivery side

Technical details

Hatch Cattani AC 400 Dental Air Compressor specifications
Model	Hatch Cattani AC 400 Dental Air Compressor
Type	Oil-free air compressor
Design	Twin cylinder, twin head, horizontal tank
Air tank	100 litres
Air delivery	320 Nl/min at 5 bar
Air driers	2
Motors	2
Suggested for	4 to 5 dental units
Sound pressure level	73 dB(A)
Noise reduction option	Plastic cover, about -10 dB(A)
Dimensions, AC 400 Q	W 1160 x D 650 x H 890 mm
Dimensions	W 1155 x D 550 x H 745 mm
Net weight	112 kg
Manufacturer	Cattani, Italy, supplied by Hatch Group
