Cattani

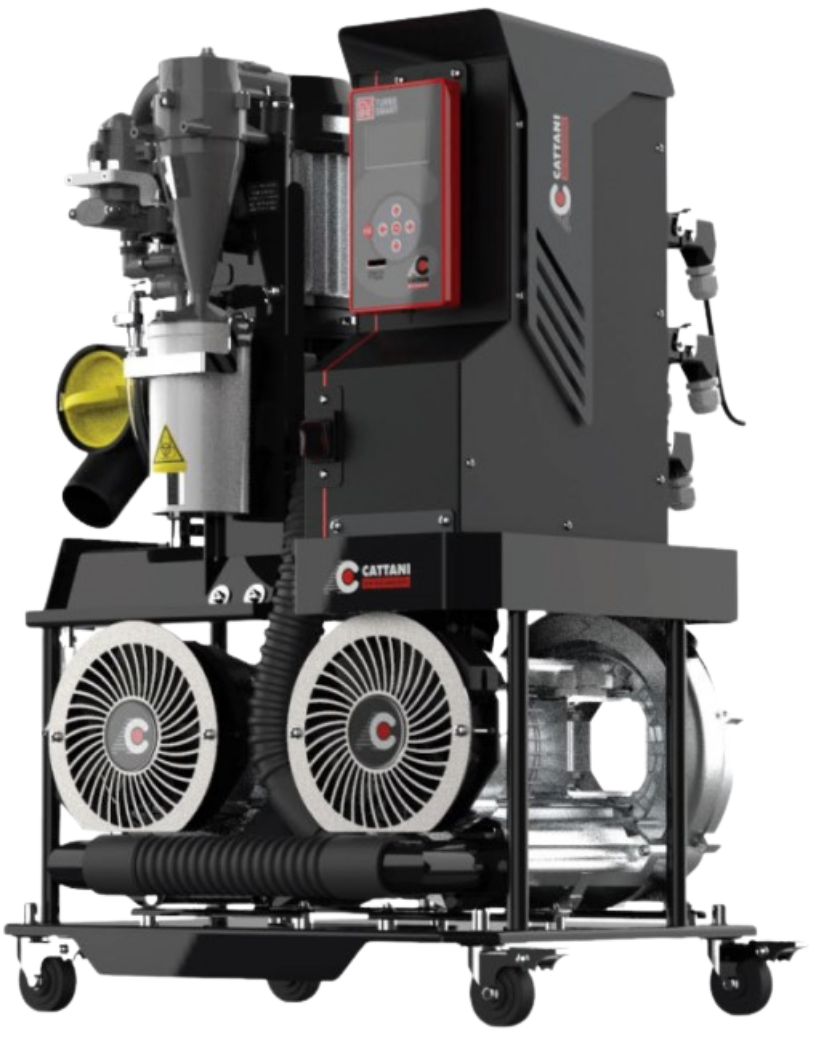

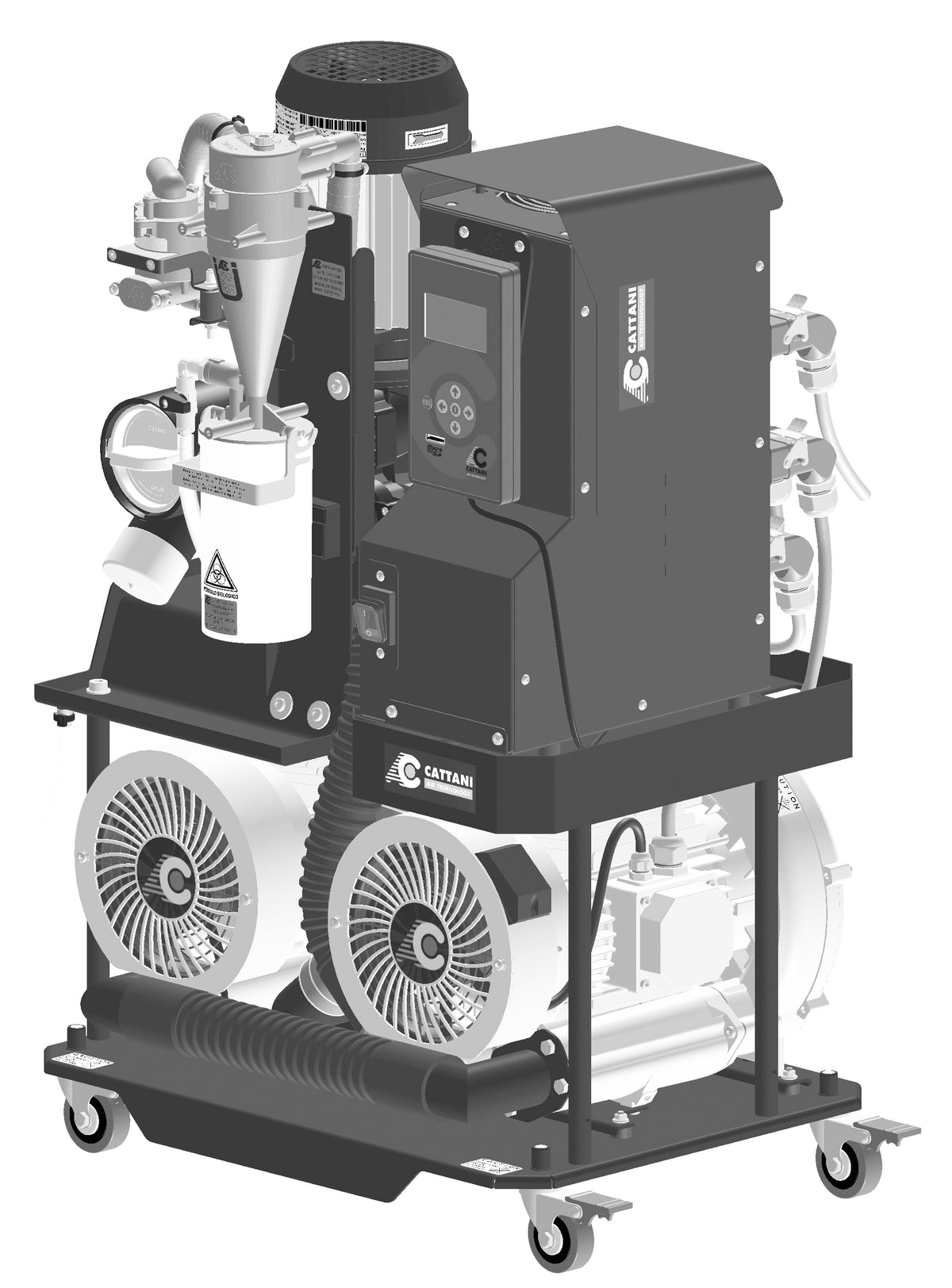

Hatch Cattani Turbo-Smart HP Dental Suction Unit

  • Capacity: Up to 4 surgeries working at the same time
  • Flow: Up to 1916 l/min, 338 mbar for continuous service
  • Control: Inverter controlled, variable speed
  • Separation: ISO 18 hydrocyclone included
  • Made by: Cattani, Italy, supplied by Hatch Group
Full description and specifications

Click or tap the picture to zoom in, then move around it.

Overview

The Cattani Turbo-Smart HP is a dry dental suction unit supplied by Hatch Group across Canada, serving up to 4 surgeries at the same time.

The Cattani Turbo-Smart HP is a dry dental suction system made in Italy by Cattani and supplied in Canada by Hatch Group, fitted with an ISO 18 hydrocyclone. Inverter control adjusts the suction to demand, and it is suggested for up to 4 surgeries working at the same time. It moves up to 1916 l/min, with a maximum operating head of 338 mbar for continuous service.

  • Power consumption: 3 kW, 12 A
  • Electrical: 230 V, 50/60 Hz, single phase
  • Sound pressure level: 70 dB(A) with ducted air
  • Dimensions: L 510 x D 370 x H 770 mm
  • Net weight: 56 kg

Specifications

BrandCattani
